Pre press equipment
Publish:2025-02-22 View:96

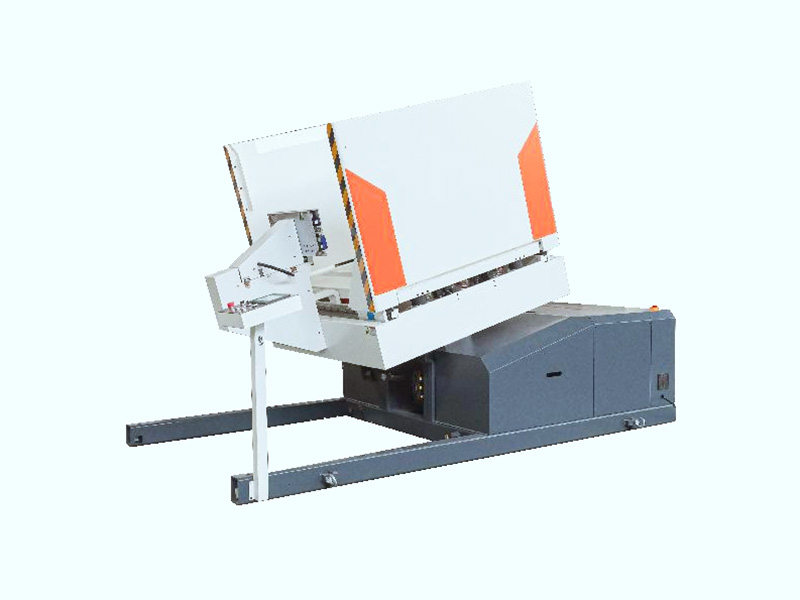

Paper pile sorting machine, also known as flipping machine or paper finishing machine, its main functions include dust removal, paper leveling Loosen paper, flip paper. This device can organize paper before printing and can also handle double-sided printing  After completing single-sided printing on the required paper, flip it 180 degrees for another printing surface printing. This product can effectively improve production efficiency, save labor, and reduce production costs,Improve the quality of printed materials.

Technical Parameter

Model

FZS1200

Maximum weight of paper stack

1000KG

Maximum paper size

1451100mm

Minimum paper size

560×500mm

Maximum spacing between clamps

1600mm

Minimum spacing between clamps

760mm

power

30KW

Power Supply

3P 380V AC 50Hz

oil pressure

Max.16MPa

Net weight of the whole machine

4000KG

External dimensions

3600×1950×2435mm

temperature

+12--+45

humidity

Dry and ventilated, with a relative humidity not exceeding 50% and no condensation

ground

Ground level foundation is sturdy
