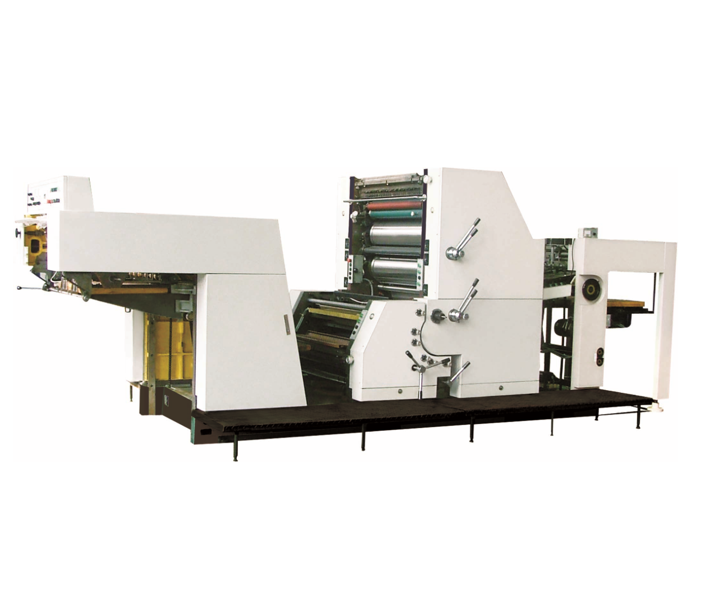

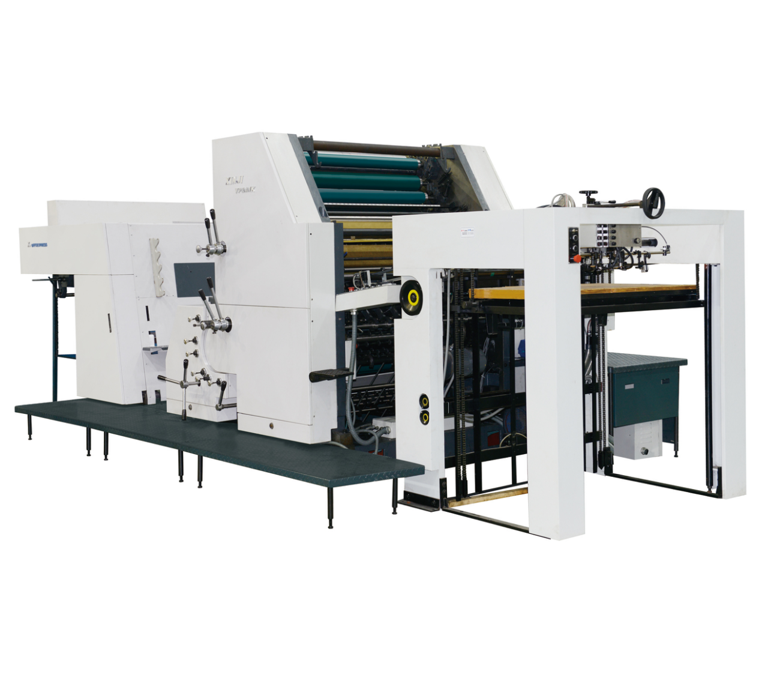

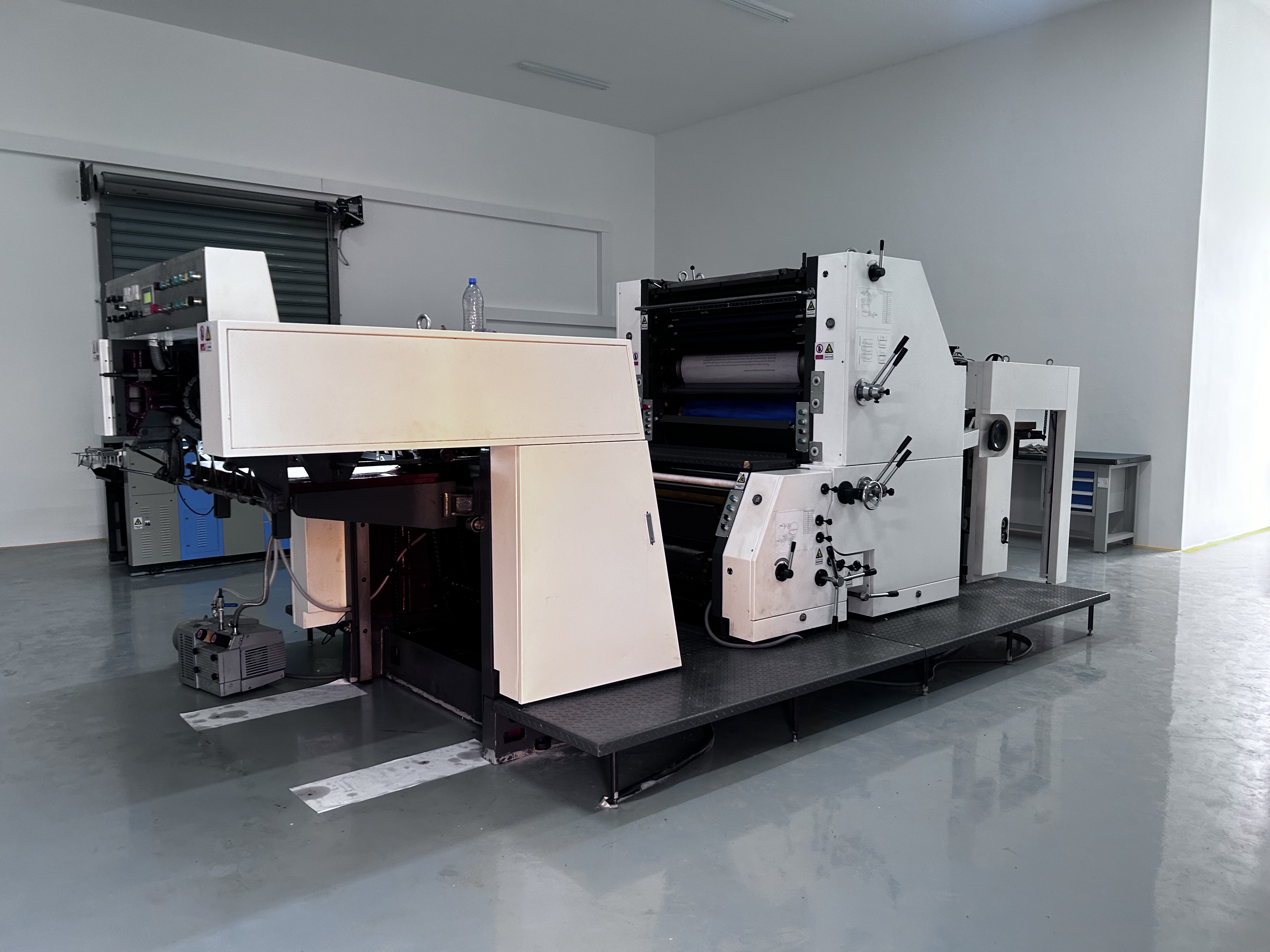

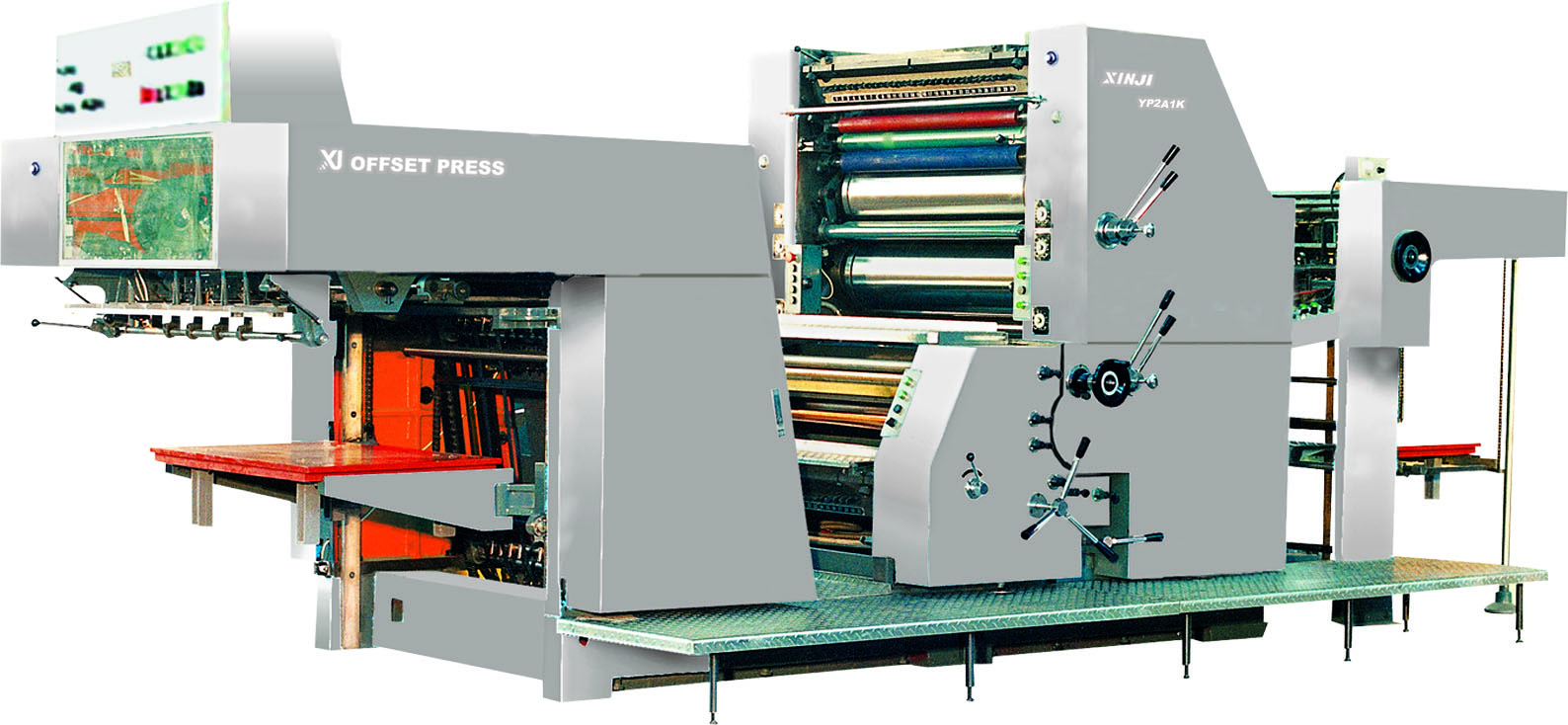

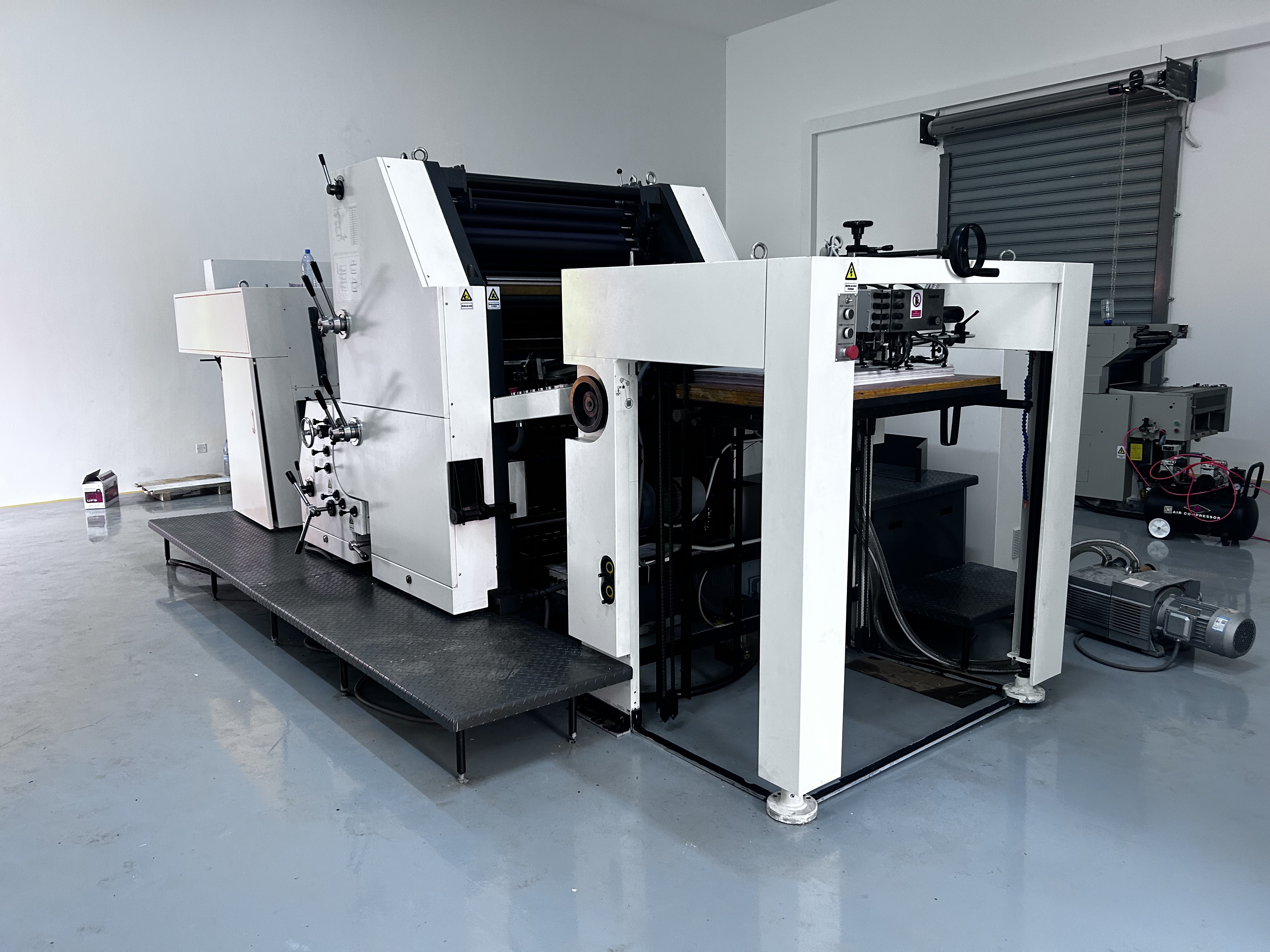

ITEMYP2A1K(two color) Max.sheet size650×920mmMin.sheet size393×546mmPaper thickness30-450g/m2Max.printing area640×920mmPlate size950×760×0.3mmBlanket size910×960mmCovering size950×770×1mmMaximum speed10000s/hFeed Paper pile height1060mmDelivery  pile height910mmMain motor power11kwNiet weight10800Overall dimensions5695×2832×2136mm 1． 输纸部分 Paper feeding part Feeder paper conveyor adopts European popular structural design, with high speed and stability. Perfect combination of machinery, electricity and gas, stable operation; Accurate paper feeding and high precision; Compact structure and convenient adjustment and operation; The detection action is sensitive and reliable;The enclosed shield of the whole machine is beautiful and generous; The paper feeding bridge plate frame can be lifted and lowered manually, which is convenient for adjustment.The lifting button operation of the paper stacking table is equipped with upper and lower limit switches, and can be lifted manually. 2． 套准机构 Registration mechanism Swing paper delivery mechanism, the machine runs smoothly;The front and rear height gauges can be adjusted separately; Electric teeth detect paper faults such as empty sheet, double sheet, early arrival, late arrival and skew of paper;The side rule can be moved as a whole or adjusted slightly. The maximum pulling amount of the side rule is 12mm;The front gauge electric tooth detects paper faults such as empty sheet, double sheet, early arrival of paper, late arrival and skew of paper.3． 印刷部分 Printing part Satellite roller arrangement;The embossing, rubber and printing plate rollers are supported by hollow roller bearings. The preload eliminates the gap. The machine runs light and stable with strong accuracy retention, which can effectively prolong the service life of the roller;The plate cylinder adopts quick change clamp, which is convenient and fast to operate;The plate cylinder is equipped with circumferential and axial plate adjustment mechanism, which can effectively reduce the printing preparation time and improve the printing efficiency;The embossing roller is sprayed with wear-resistant and corrosion-resistant hardened layer;Mechanical clutch pressure. 4． 匀墨及给水部分 Inking and water supplyThe ink transmission structure is similar to the European model design, with fast ink transmission and uniform ink channeling;The eccentric mechanism can adjust the amount of ink channeling roller and water channeling roller, which can realize stepless adjustment;The outlet roller motor is driven by frequency converter with stepless speed regulation, and the water volume can be adjusted flexiblyThe automatic circulating water feeding device / alcohol fountain model has bright ink color and is conducive to registration. 5． 收纸部分 Paper receiving partThe auxiliary paper receiving mechanism changes the paper stacking table or paper drying rack without stopping the machine;The powder spraying device is suitable for printing coated paper and large ink printing;Paper receiving fan unit, suitable for high-speed printing;The paper receiving opening die can adjust the travel and stay position according to the running speed of the machine;The paper brake roller can adjust the position according to the paper size;Brake roll suction device, adjustable suction volume, flat paper;The position of the side flush paper baffle shaft can be adjusted according to the size of the paper; 6． 润滑系统 lubrication systemCirculating throttle type automatic centralized lubrication system, regular and quantitative oil supply lubrication;Fault detection and alarm of random lubrication system;PC controls the oil supply time and quantity; 7． 控制系统 Control system Programmable controller and Chinese character display, reliable performance and high degree of automation;The main motor is a variable frequency speed regulating motor, which can adjust speed steplessly and save power consumption;Liquid crystal display alarm device, automatic fault display;Set safety protection measures such as stop lock, safety bar, shield switch, manual turning switch and paper pile lifting limit switch;Short circuit and overload protection function.
